The YSP 45 rotary hammer is a pneumatic telescopic rotary hammer designed for drilling holes in rocks of medium and high strength, with a diameter of 30-42 mm with a laying angle of 60-90 degrees. The perforator is equipped with an oil can FY500. The YSP45 telescopic pneumatic perforator is designed for drilling rising holes during mining and mining in rocks with a strength coefficient of 18 on the prof scale.
|
Parameters |
YSP45 | |
|---|---|---|
| Weight, kg |
44 |
|
| Min. Length, mm |
1420 |
|
| Max. Length, mm |
2170 |
|
| The diameter of the piston stroke, mm |
74 |
|
| Piston stroke, mm |
47 |
|
| Impact energy, J |
≥73.5(0.63Mpa) ≥70(0.5Mpa) ≥57(0.4Mpa) |
|
|
Pneumatic pressure, 5kg/sm2 |
Air consumption, l/s |
≤83 |
| Impact frequency, Hz |
≥47 |
|
| The inner diameter of the air sleeve, mm |
25 |
|
| Rotation speed, rpm |
350 |
|

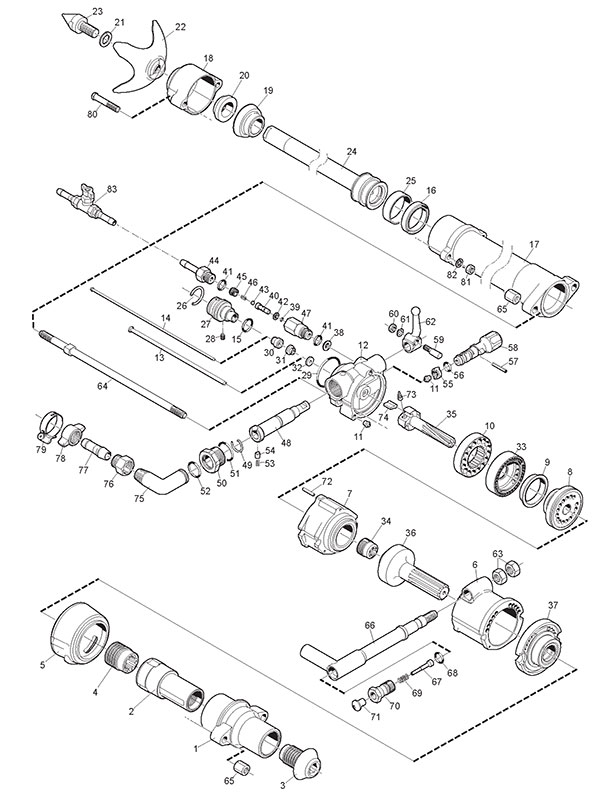

The composition of the YSP45 pneumatic perforator (All parts are available for order)
|
No. |
Description |
Quantity |
|
1 |
Front head |
1 |
|
2 |
Rotation sleeve |
1 |
|
3 |
Shank bush |
1 |
|
4 |
Rotation nut |
1 |
|
5 |
Silencer |
1 |
|
6 |
Cylinder |
1 |
|
7 |
Air cylinder |
1 |
|
8 |
Valve sleeve |
1 |
|
9 |
Valve |
1 |
|
10 |
Ratchet |
1 |
|
11 |
Small seal |
3 |
|
12 |
Back head |
1 |
|
13 |
Air tube |
1 |
|
14 |
Water tube |
1 |
|
15 |
O-ring |
1 |
|
16 |
Yx seal ring |
1 |
|
17 |
Outer pipe |
1 |
|
18 |
Lower pipe seat |
1 |
|
19 |
Guide sleeve |
1 |
|
20 |
Dust sleeve |
1 |
|
21 |
Spring pad |
1 |
|
22 |
Foot |
1 |
|
23 |
center |
1 |
|
24 |
Piston rod |
1 |
|
25 |
Ring |
1 |
|
26 |
Elastic ring |
1 |
|
27 |
Water tube nut |
1 |
|
28 |
Fixing screw |
1 |
|
29 |
O-ring |
1 |
|
30 |
Water tube sleeve |
1 |
|
31 |
Air tube seat |
1 |
|
32 |
Air tube pad |
1 |
|
33 |
Valve chest |
1 |
|
34 |
Rifle nut |
1 |
|
35 |
Rifle bar |
1 |
|
36 |
Piston |
1 |
|
37 |
Guide sleeve assembly |
1 |
|
38 |
Large rubber pad |
1 |
|
39 |
O-ring |
1 |
|
40 |
Water valve |
1 |
|
41 |
O-ring |
2 |
|
42 |
Rubber pad |
1 |
|
43 |
Aluminum plug |
1 |
|
44 |
Water hose swivel |
1 |
|
45 |
Nut |
1 |
|
46 |
Water valve spring |
1 |
|
47 |
Water valve body |
1 |
|
48 |
Control valve |
1 |
|
49 |
Lock ring |
1 |
|
50 |
Air hose nut |
1 |
|
51 |
O-ring |
1 |
|
52 |
O-ring |
1 |
|
53 |
Spring |
1 |
|
54 |
Lock pin |
1 |
|
55 |
Expansion ring |
1 |
|
56 |
O-ring |
1 |
|
57 |
Dowel pin |
1 |
|
58 |
Pressure regulating valve |
1 |
|
59 |
Fixing pin |
1 |
|
60 |
Hexagon thin nut |
1 |
|
61 |
Spring pad |
1 |
|
62 |
Control handle |
1 |
|
63 |
Hexagon nut |
2 |
|
64 |
Side bolt |
2 |
|
65 |
Hexagon thick nut |
4 |
|
66 |
Handle |
1 |
|
67 |
Exhaust valve |
1 |
|
68 |
O-ring |
1 |
|
69 |
Exhaust valve spring |
1 |
|
70 |
Exhaust valve body |
1 |
|
71 |
Exhaust valve button |
1 |
|
72 |
Fixing pin |
1 |
|
73 |
Conical spring |
4 |
|
74 |
Ratchet pawl |
4 |
|
75 |
Air hose swivel |
1 |
|
76 |
Connector nut |
3 |
|
77 |
Rubber tube connector |
3 |
|
78 |
Wing nut |
3 |
|
79 |
Hoop |
3 |
|
80 |
Bolt |
2 |
|
81 |
Hexagon nut |
2 |
|
82 |
Spring pad |
2 |
|
83 |
Water valve |
1 |
|
84 |
Retainer bolt |
2 |
|
85 |
Retainer spring |
2 |
|
86 |
Retainer |
1 |
|
87 |
Locking nut |
2 |
|
88 |
Dust ring |
1 |
