Balkancorex d.o.o. supplies high-tech ventilation equipment for mining companies, mining enterprises, mining complexes, manufacturing and construction organizations. The company's catalog presents universal industrial fans of medium pressure of standard models, which can be purchased on favorable terms, as well as order a radial fan according to individual customer drawings.
The medium-pressure ventilation equipment of the snail type from Balkancorex d.o.o. is characterized by versatility, which allows them to be used in various industries.
Features of medium pressure centrifugal fans
Radial ventilation equipment is driven by the action of centrifugal force resulting from the ejection of air flows without the content of sticky, fibrous and small solid inclusions (maximum amount up to 100 mg/m3), at a pressure not exceeding 3000 Pa.
Advantages of medium-pressure centrifugal fans
Popular models
The catalog presents radial fans of the BP (VC) medium pressure type, differing in the type of installation, technical features and the metal used (carbon,
Depending on the model, the medium-pressure fans from Balkancorex d.o.o. are equipped with high-power engines (including explosion-proof ones) and, depending on the model and its purpose, are made of steel or various metal alloys

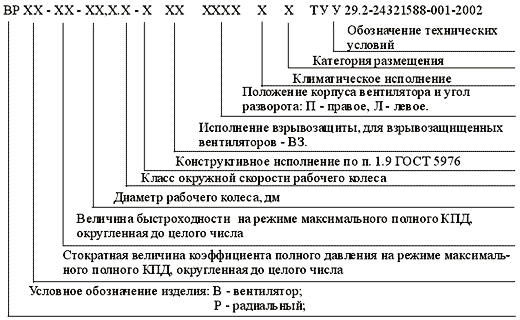

The fans are manufactured in accordance with the technical specifications 29.2-24321588-001-2002:

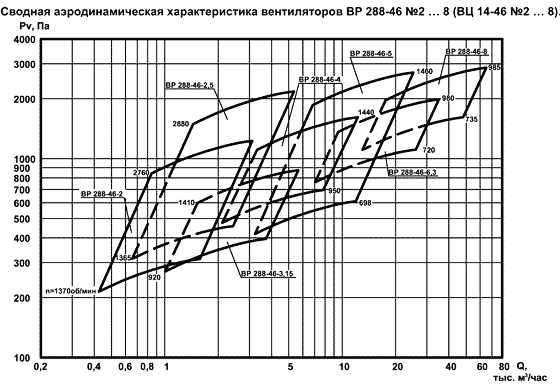

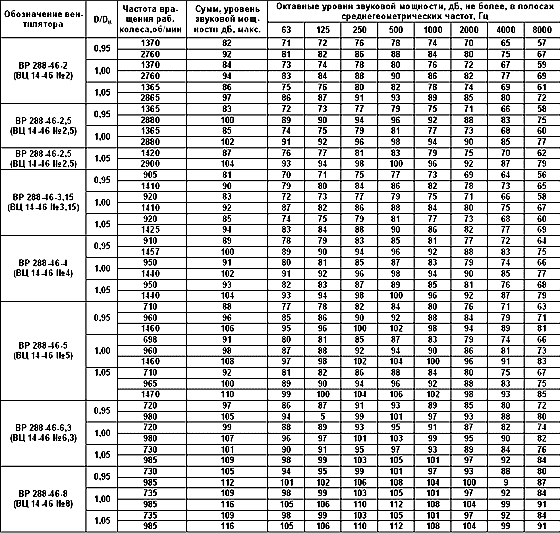

Fans BP 288-46 (VC 14-46) are used:
• Medium pressure
• One-way suction
• Spiral rotary housing
• Forward curved shoulder blades
• Number of blades - 32
• Direction of rotation - right and left
FAN MANUFACTURING OPTIONS
• General purpose carbon steel GOST 5976-90
• Corrosion-resistant (made by special order)
THE PURPOSE OF FANS

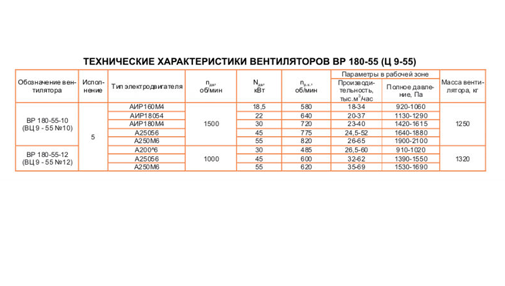

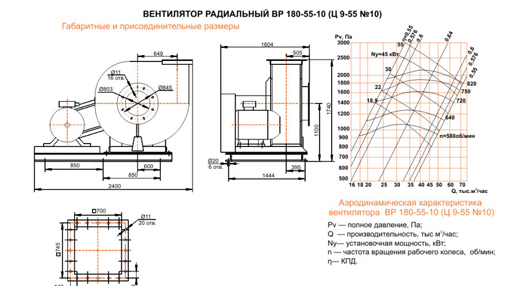

Fans BP 180-55 (C 9-55) are used:
• in air conditioning systems,
• in ventilation systems of industrial, public and residential buildings,
• for other industrial and sanitary purposes.
