Puncher YT29A – Zadržavajući težinu i karakteristike protiv vibracija, kao i minimalnu moguću potrošnju komprimovanog vazduha, puncher je dobio povećanu energiju udara. Tako se produktivnost perforatora povećala u stenama visoke čvrstoće.
|
Parameters |
YТ29А | |
|---|---|---|
| Weight, kg |
27 |
|
| Length, mm |
659 |
|
| Piston diameter, mm |
82 |
|
| Piston stroke, mm |
60 |
|
| Impact energy, J |
≥78(0.63Mpa) ≥69(0.5Mpa) ≥50(0.4Mpa) |
|
| Crown diameter, mm |
34-45 |
|
| Pneumatic pressure, 5kg/sm2 | Air consumption, l/s |
≤65 |
| Impact frequency, Hz |
≥37 |
|
| The inner diameter of the air sleeve, mm |
25 |
|
| Rotation speed, rpm |
300 |
|
| Rod shank, mm |
22x108, 25x108 |
|

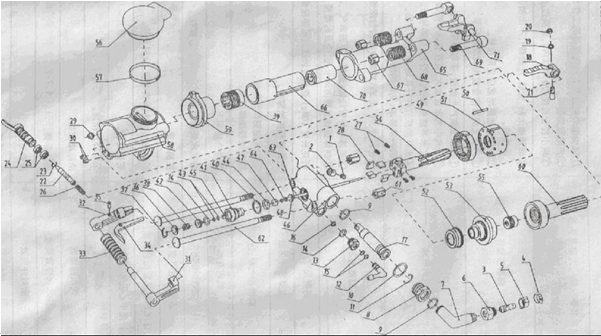

The composition of the pneumatic perforator YT29A (All parts are available for order)
Detailed description of the details of the perforator model YT29A:
|
№ p/p |
Designation |
Name |
Quantity |
|
1 |
YT25-3.20 |
Spring |
1 |
|
2 |
YT25-3.21 |
Throttle valve lock |
1 |
|
3 |
25-04 |
Nipple |
1 |
|
4 |
No 2A |
The yoke |
1 |
|
5 |
25-01 |
Cap nut |
1 |
|
6 |
25-16 |
Fitting |
1 |
|
7 |
7655-309A |
Air duct elbow |
1 |
|
8 |
7655-307 |
Cap nut |
1 |
|
9 |
30×3-25 |
Ring |
2 |
|
10 |
YT25-3.12 |
Pad |
1 |
|
11 |
YT25-3.33 |
Locking ring |
1 |
|
12 |
YT27-308 |
Air duct elbow |
1 |
|
13 |
YT27-309 |
Cap nut |
1 |
|
14 |
18×3-25 |
Ring |
2 |
|
15 |
16×2.4GB1235-76 |
O-ring |
2 |
|
16 |
YT27-310 |
Locking ring |
1 |
|
17 |
YT29A-1 |
Throttle valve |
1 |
|
18 |
YT27-306 |
Control lever |
1 |
|
19 |
GB93 10 |
Washer GOST 9310 |
1 |
|
20 |
GB6172 M10 |
Nut M10 |
1 |
|
21 |
YT25-3.17A |
Finger(control handle) |
1 |
|
22 |
YT27-315 |
Control spool |
1 |
|
23 |
YT27-314 |
Locking ring |
1 |
|
24 |
YT24-3.14a |
Pressure valve |
1 |
|
25 |
YT24-3.13a |
The cuff |
2 |
|
26 |
YT27-311 |
Spring |
1 |
|
27 |
YT25-1.15 |
The spring is conical |
4 |
|
28 |
YT25-1.14 |
The doggie |
4 |
|
29 |
YT30-3.07 |
Sealer |
1 |
|
30 |
YT30-3.06 |
The seal is tubular |
2 |
|
31 |
YT27-317A |
The right handle |
1 |
|
32 |
YT27-319A |
Left lever |
1 |
|
33 |
YT27-318A |
Lever |
1 |
|
34 |
YT27-316 |
The trigger |
1 |
|
35 |
GB879 8×24 |
Trigger axis |
1 |
|
36 |
YT25-3.05 |
Valve cover |
1 |
|
37 |
YT25-3.34 |
Ring |
1 |
|
38 |
YT25-3.06 |
Spring |
1 |
|
39 |
YT27-204 |
The clamping nut is slotted bronze |
1 |
|
40 |
YT25-3.35 |
Pad |
1 |
|
41 |
YT25-3.08 |
Water supply valve body |
1 |
|
42 |
YT25-3.11 |
Valve spool |
1 |
|
43 |
4×2-25 |
Ring |
2 |
|
44 |
YT25-3.24 |
Ring |
1 |
|
45 |
YT25-3.13 |
Sealing ring |
1 |
|
46 |
YT29-2 |
The tail section of the hull |
1 |
|
47 |
7655D-2 |
Water tube sleeve |
1 |
|
48 |
YT25-3.14 |
Sealing of the air tube |
1 |
|
49 |
YT29-3 |
Ratchet wheel |
1 |
|
50 |
7655D-6 |
The retainer |
1 |
|
51 |
YT29-4 |
Valve body |
1 |
|
52 |
YT29-5 |
Valve |
1 |
|
53 |
YT29A-6 |
Valve plug |
1 |
|
54 |
YT29A-7 |
The rotor |
1 |
|
55 |
YT29-8 |
Piston nut |
1 |
|
56 |
YT29-9A |
muffler |
1 |
|
57 |
No.4x |
The yoke |
1 |
|
58 |
YT29A-10 |
cylinder |
1 |
|
59 |
YT29-11 |
Support sleeve |
1 |
|
60 |
YT29A-12 |
The piston |
1 |
|
61 |
GB56 M16 |
Coupling bolt nut M16 |
2 |
|
62 |
YT29A-13 |
Coupling bolt |
2 |
|
63 |
YT29A-14 |
air tube |
1 |
|
64 |
YT29A-15 |
water tube |
1 |
|
65 |
YT29A-16 |
The head part of the case |
1 |
|
66 |
YT29A-17 |
Rotator |
1 |
|
67 |
GB889 M16 |
Rod holder nut |
2 |
|
68 |
7655-205 |
Rod holder spring |
2 |
|
69 |
7655-203C |
Rod Holder bolt |
2 |
|
70 |
YT25-2.03 |
The spindle |
1 |
|
71 |
7655-207C |
Rod holder |
1 |
|
72 |
FY250C |
oilcan |
1 |
